Beacons · Part No. EM-PL-360-1K
PULSAR 1KLED beacon — single-color version
One lamp. One color. 360°.
A low-profile 360° beacon with 12 High-Power LEDs and an automatic day/night mode, in a choice of three certified colors. Three mounting systems — including a PIMOT-tested NdFeB magnetic mount; one beacon completes the roof.
UNECE E20 65R TA2/TB2/TR2 · UNECE E20 10R-06
PULSAR 1K — about the product
PULSAR 1K was created to complete a roof with a single beacon — on police cars, ambulances, recovery vehicles and municipal fleets. The same design, three certified colors plus green and white versions — every vehicle type.
Mounting PULSAR — three ways
The beacon mounts on the vehicle roof with its axis perpendicular to the ground. A rubber element protects the panel from scratching and seals the joint. The choice of mount depends on whether the beacon stays on the roof permanently or is meant to be removable.
A · 3-POINT3-point mounting
Three points spaced 120° apart: 3× M6 bolted from under the roof, or 3× M5 from above — in the latter variant the lens comes off before installation.
Selection: Permanent installation on flat paneling. The rubber seals the joint, but an additional sealant is used against water ingress.

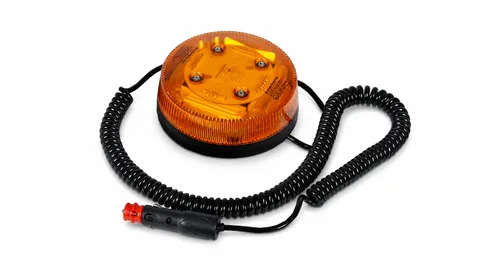

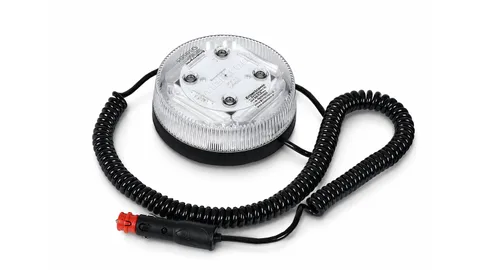

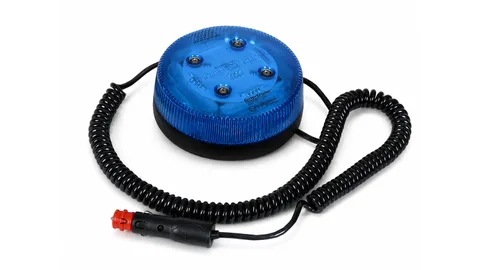

B · MAGNETICMagnetic mounting
A base of high-holding-force neodymium magnets. The rubber element protects the roof and keeps the beacon from sliding on the panel.
Selection: When the beacon is to be removable: tool-free installation, no drilling, on a steel roof. Effectiveness confirmed by the PIMOT test.
C · 1-POINT1-point mounting
A single central M12 bolt in a dedicated hole, tightened with the nut and washer supplied in the kit.
Selection: When the roof already has a prepared central hole. The rubber seals the joint — additional sealant recommended.
Key features
- 12× High-Power LED — one certified color
- Five colors: blue · red · amber · green · white
- Ultra-compact, low-profile design
- No radio-communication interference
- Synchronization of up to 10 lamps over one wire
- Built-in light sensor — auto day/night
- Integration with the EMCORE system
- Reverse-polarity protection
Applications
- Roof of an emergency vehicle — marked and unmarked (magnet)
- Road-maintenance and municipal vehicles (amber)
- Integration with the EMCORE system
Variants and options
- TB2-B (blue)
- TA2-A (amber, road services)
- TR2-R (red)
- green
- white
PULSAR 1K — technical data
| Light source | 12 High-Power LED |
|---|---|
| Light coverage | 360° |
| Voltage | 12 / 24 V DC |
| Avg. current draw | 0.8 A (12 V) · 0.4 A (24 V) |
| Average power | 15 W |
| Signal colors | TB2 · TR2 · TA2 · white · green |
| Flash modes | Quad / Single / Double / Triple / Night |
| Operating temperature | −40 → +60 °C |
| Dimensions | ø 150 × h 50 mm (magnetic h 55 mm) |
| Synchronization | up to 10 devices |
| Mounting | 3-point (M6/M5) · NdFeB magnetic · 1-point (M12) |
Magnetic-mount test — WT/118/PIMOT/19
| Road test | Requirement | Result |
|---|---|---|
| Acceleration to 140 km/h | No displacement of the test object | No displacement |
| Emergency braking from 140 km/h | No displacement under maximum-effectiveness braking | No displacement |
| R = 50 m curve at 60 km/h | No displacement on a 50 m radius curve | No displacement |
| Lane change at 60 km/h | No displacement during the maneuver | No displacement |
| Cobblestones, 40 km/h, 3 km stretch | No displacement on a cobbled surface | No displacement |
| Separation — dry roof | — | 1018 km/h (210 N starting force) |
| Separation — wet roof | — | 544 km/h (60 N starting force) |
PULSAR 1K — questions and answers
PULSAR 1K is priced individually — the price depends on the configuration (variant, length, colors, control) and order size. As the manufacturer we offer B2B terms for upfitters and fleets; a quote is usually ready the same business day. Ask via the form or by phone: +48 518 909 088.
