Directional lights · Part No. XPULSE-DASH

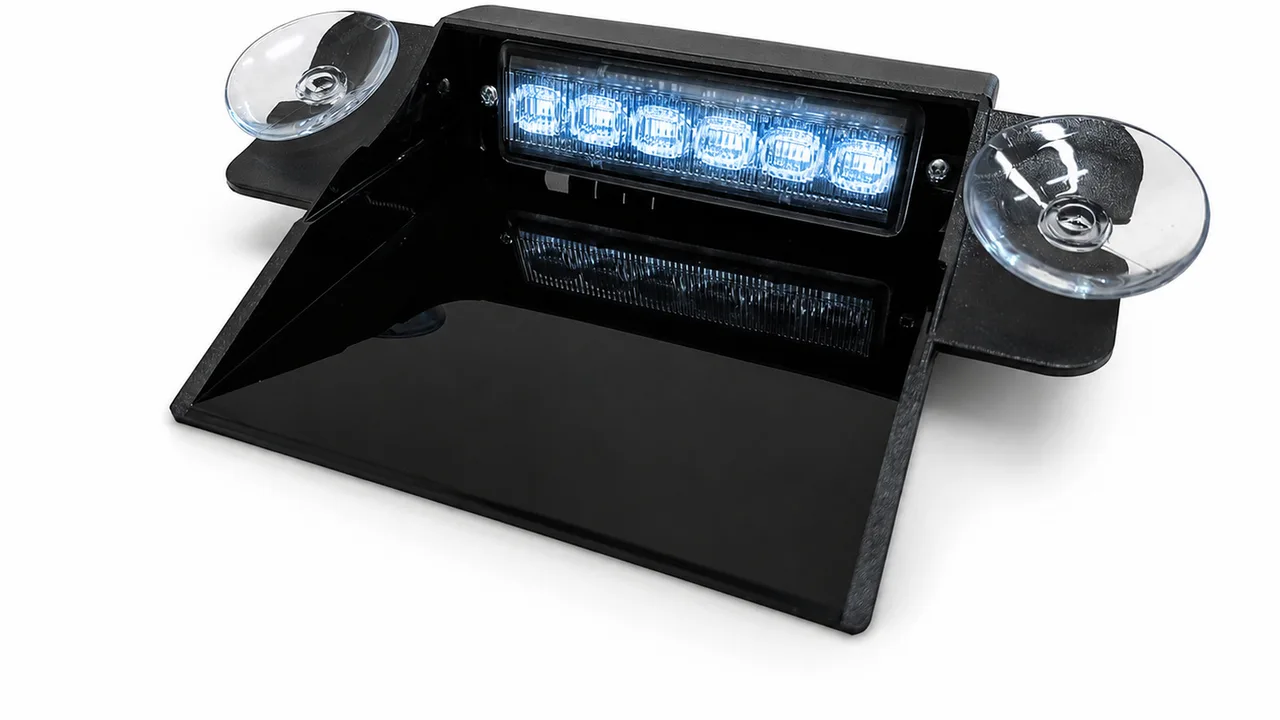

XPULSE DASHDirectional dash light (windscreen-mounted)
Behind the glass. No reflections.
A dash light with a black anti-reflective collar: the lens is shielded from windscreen and dashboard reflections — the signal's full power goes out ahead of the vehicle without dazzling the driver, at night too. Tool-free suction-cup mounting, not a single hole in the vehicle.
ECE R65 Cl. 2ECE R10E20
UNECE E20 65R XA2/XB2/XR2 · UNECE E20 10R-06
XPULSE DASH — about the product
XPULSE DASH is a compact dash-mounted lamp — for vehicles that must not give themselves away until the action starts: full warning from behind the windscreen, without a single hole in the vehicle.
Key features
- Anti-reflective collar — zero windscreen reflections
- Dash mounting on suction cups
- Ultra-Slim design — 6× High-Power LED
- Multi-voltage 10–30 V DC supply
- 12 flash patterns, synchronization of up to 10 units
Applications
- Unmarked vehicles — discreet signaling behind the windscreen
- Mounting without touching the bodywork (suction cups)
- Supplementing the main signaling at the front of the vehicle
Variants and options
- XB2-H (blue, horizontal)
XPULSE DASH — technical data
| Light source | 6× High-Power LED |
|---|---|
| Voltage | 10–30 V DC |
| Current draw | 0.5 A (12 V) · 0.25 A (24 V) |
| Average power | 5 W |
| Flash patterns | 12 (sync / alt) |
| Synchronization | up to 10 units |
| Installation | on the dash — suction cups |
| Operating temperature | −40 → +50 °C |
| Lens | Clear |
XPULSE DASH — questions and answers
XPULSE DASH is priced individually — the price depends on the configuration (variant, length, colors, control) and order size. As the manufacturer we offer B2B terms for upfitters and fleets; a quote is usually ready the same business day. Ask via the form or by phone: +48 518 909 088.
From the same ecosystem

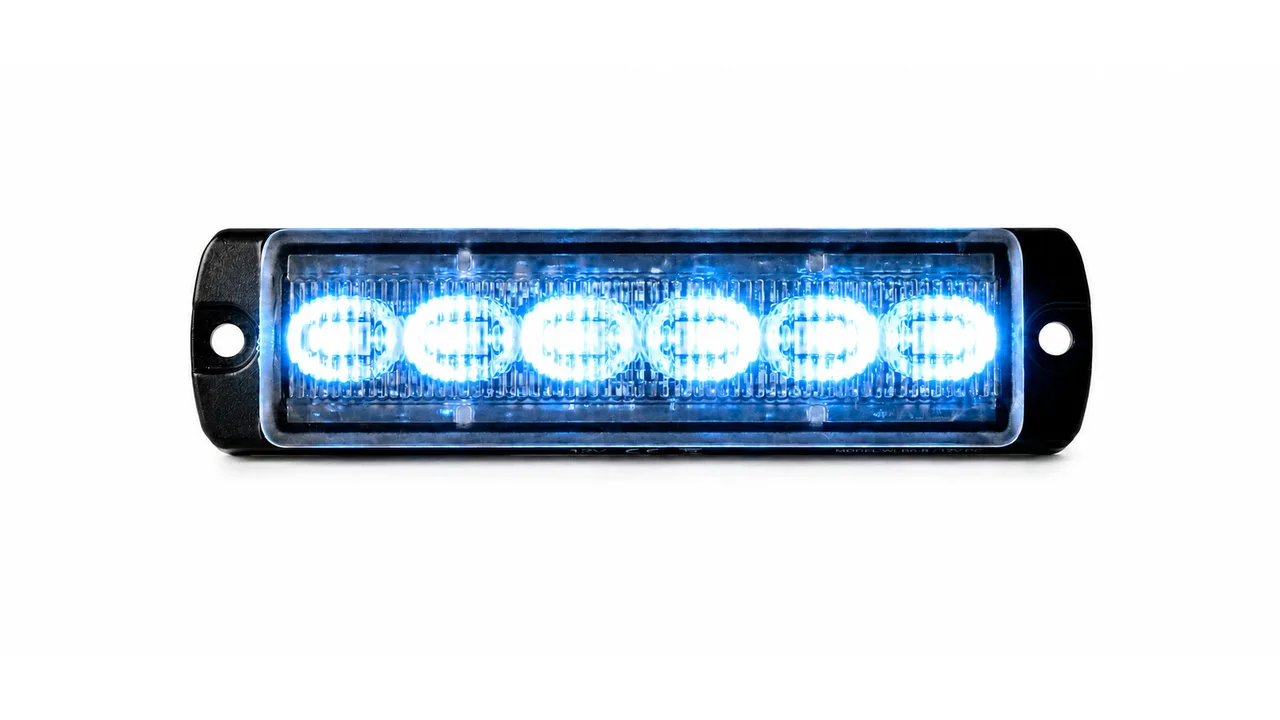

Directional light — single-color versionXPULSE 1K
Discreet in the build. Relentless.
A directional light in an Ultra-Slim design just 10 mm thick, in a choice of three certified colors — a legible signal at drivers' eye level.
ECE R65 Cl. 2ECE R10E20View product

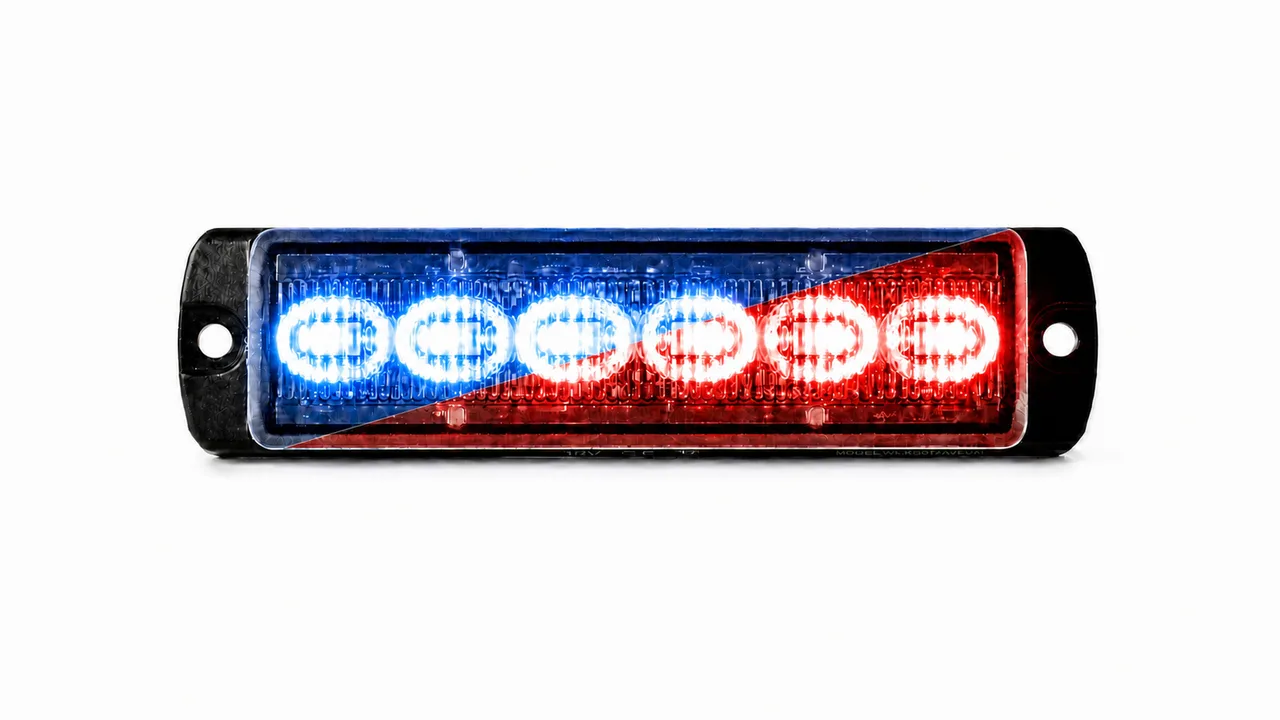

Directional light — dual-color versionXPULSE 2K
Two colors. Independent control.
An Ultra-Slim dual-color directional light: two certified colors with independent control in a 10 mm profile — two signal functions at one point of the build.
ECE R65 Cl. 2ECE R10E20View product
