How much does XPULSE 1K cost? (price)

XPULSE 1K is priced individually — the price depends on the configuration (variant, length, colors, control) and order size. As the manufacturer we offer B2B terms for upfitters and fleets; a quote is usually ready the same business day. Ask via the form or by phone: +48 518 909 088.

Where can I find the XPULSE 1K datasheet?

We send the datasheet of your chosen configuration by e-mail on request — write to sales@emertronic.pl. The basic technical data is in the table above, and the full 2026 product catalog downloads without registration in the Downloads section.

What type approvals does XPULSE 1K hold?

XPULSE 1K: ECE R65 Cl. 2, ECE R10, E20 (UNECE E20 65R XA2/XB2/XR2 · UNECE E20 10R-06). Testing is carried out in Poland, and certification covers every operating mode — not just the base variant.

Will I get an installation manual for XPULSE 1K?

Yes — the installation and wiring manual ships with the product, and on upfitter orders we support the first installation and train the team. Tender documentation (declarations, type approvals) is compiled on request.

Directional lights · Part No. XPULSE-1K

XPULSE 1KDirectional light — single-color version

Name: XPULSE 1K
Brand: Emertronic
SKU: XPULSE-1K

Discreet in the build. Relentless.

A directional light in an Ultra-Slim design just 10 mm thick, in a choice of three certified colors — a legible signal at drivers' eye level.

ECE R65 Cl. 2ECE R10E20

UNECE E20 65R XA2/XB2/XR2 · UNECE E20 10R-06

Ask about this product PDF catalog

XPULSE 1K — about the product

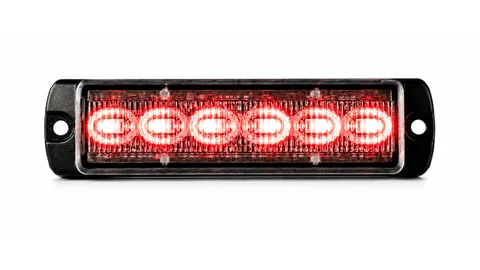

XPULSE 1K is a compact directional light with a 10 mm profile that fits practically anywhere on the vehicle — from the bumper and grille, through the mirrors, to the body paneling. Its small size puts the signal exactly at drivers' eye level — where a warning works fastest.

Six High-Power LEDs with dedicated optics deliver the highest light output the regulations allow (ECE R65 in the top class 2) — a warning layer no roof bar can provide. Three certified colors plus white and green versions, an Ultra-Slim design, horizontal (H) or vertical (V) mounting.

12 flash patterns with synchronization of up to 10 lamps build a coherent, synchronized layout around the whole vehicle; within the Emertronic ecosystem the lamp works with the optional ADAPTIVE mode. −40 → +50 °C operation. Successor to the discontinued XLED LM6 series — the same role in the build, new optics.

Key features

Ultra-Slim design — 10 mm profile
6× High-Power LED with precision optics
Multi-voltage 10–30 V DC supply
12 flash patterns, synchronization of up to 10 units
Clear Lens versions

Applications

Bumper, grille, mirror — discreet installation
The directional X layer — supplementing 360° lamps

Variants and options

XB2 (blue)
XA2 (amber)
XR2 (red)
position H (horizontal) / V (vertical)

XPULSE 1K — technical data

Technical specification of XPULSE 1K
Light source	6× High-Power LED
Voltage	10–30 V DC
Current draw	0.5 A (12 V) · 0.25 A (24 V)
Average power	5 W
Colors	B · A · R · white · green
Flash patterns	12 (sync / alt)
Synchronization	up to 10 units
Dimensions	111.5 × 28 × 10 mm
Operating temperature	−40 → +50 °C
Lens	Clear

XPULSE 1K — questions and answers

XPULSE 1K is priced individually — the price depends on the configuration (variant, length, colors, control) and order size. As the manufacturer we offer B2B terms for upfitters and fleets; a quote is usually ready the same business day. Ask via the form or by phone: +48 518 909 088.
