Integrated lights · Part No. INFRAME

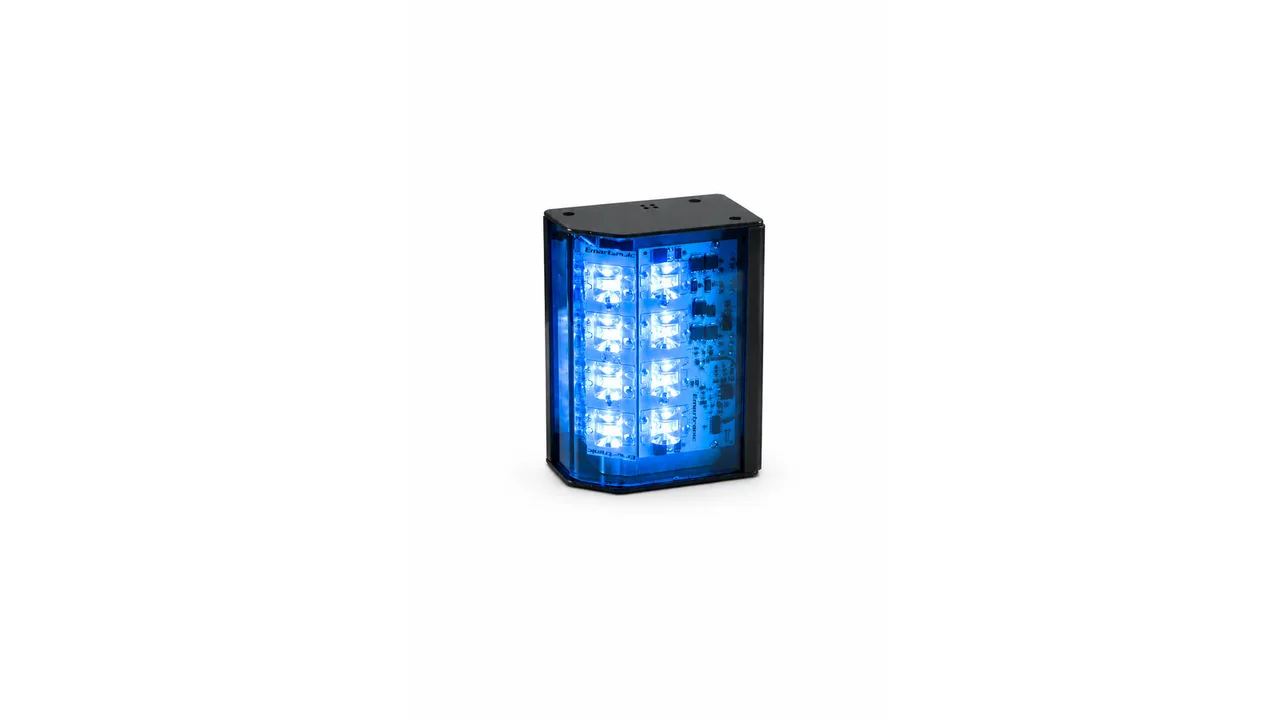

INFRAMECorner / integrated warning light

Name: INFRAME
Brand: Emertronic
SKU: INFRAME

Recessed in the body. Visible across 270°.

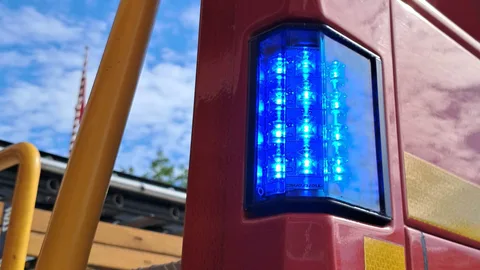

A corner lamp recessed into the vehicle body: 12 high-power LEDs with wide-angle optics and ECE R65 Half-T (HTB2) type approval. One lamp covers 270°, a pair gives the full 360° without a roof lamp — the body line stays clean.

ECE R65 Cl. 2ECE R10E20

UNECE E20 65R HTB2 · UNECE E20 10R-07

Ask about this product PDF catalog

INFRAME — about the product

INFRAME was created for upfitters who refuse to choose between a clean vehicle line and full type approval: a corner lamp recessed into the body — invisible until it starts working, impossible to miss once it does.

12 high-power LEDs with wide-angle optics cover 270° from a single corner — and mounted in pairs, the full 360° without a roof lamp. ECE R65 Half-T (HTB2) type approval settles compliance without compromising the body design.

6 synchronized flash patterns and interoperation with other Emertronic products build a coherent signaling layout. Corner mounting at the front and/or rear of the body (2× M5 bolt), −40 → +60 °C operation.

Key features

Wide 270° beam angle
Corner mounting: front and/or rear
Built-in synchronization
Small size — easy integration
Half-T type approval (pairs give the full 360°)
12 high-power LEDs

Applications

Body corners: front and/or rear
Vehicles where a roof lamp is not an option
In pairs — the full 360° (Half-T)

INFRAME — technical data

Technical specification of INFRAME
Configuration	Pair (×2)
Optics	Wide-angle
LEDs	12 pcs
Dimensions	92 × 126 × 56 mm
Voltage	10–30 V DC
Avg. current draw	1 A (12 V) · 0.5 A (24 V)
Avg. power	12 W
Flash patterns	6 (sync)
Synchronization	with other Emertronic products
Operating temperature	−40 → +60 °C
Mounting	2× M5 bolt
Colors	TB2 (blue)
