Speakers · Part No. THUNDER-TSR100F

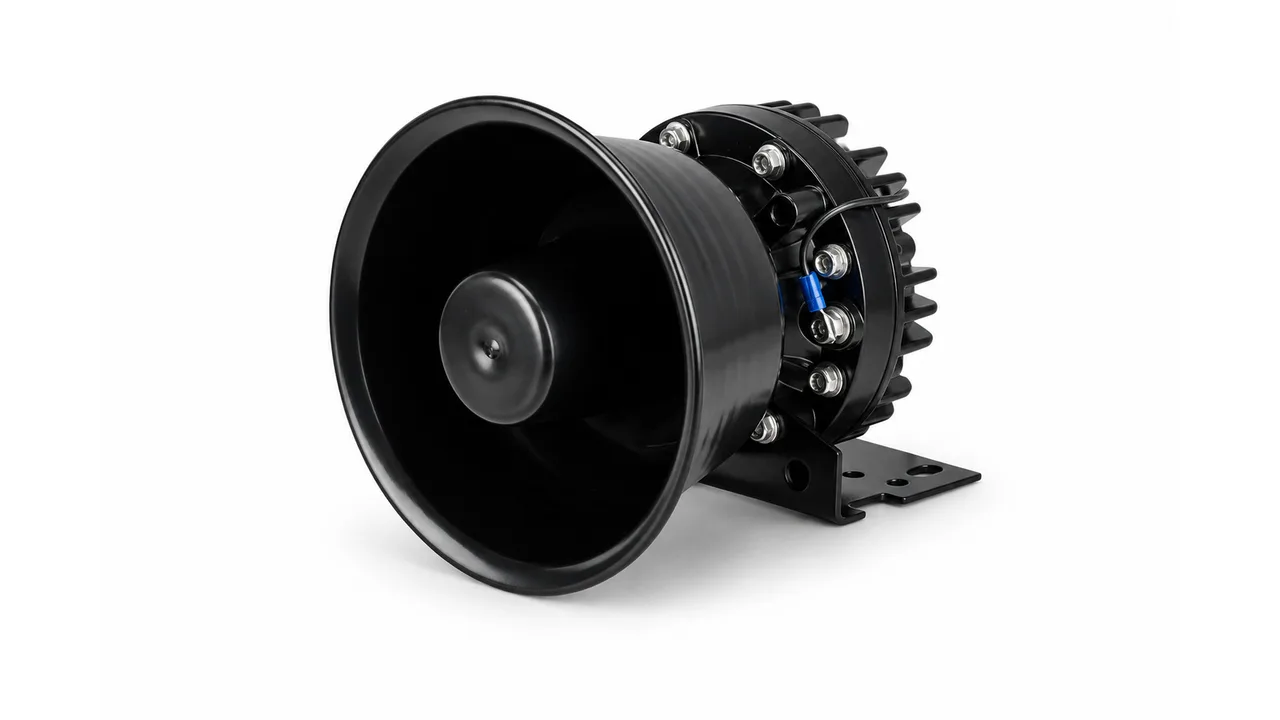

THUNDER TSR-100FSiren speaker (round housing)
Louder. Cleaner. Farther.
The round, aluminum version of the 100 W siren speaker — the same acoustic path as the TS-100F, in a format for builds that demand a precise fit.
—
THUNDER TSR-100F — about the product
THUNDER TSR-100F carries the TS-100F acoustic path into a round aluminum housing — for builds that demand a precise fit: 100 W of audibility where the classic housing will not go.
Key features
- A compact round aluminum housing
- An in-house voice coil
- A neodymium motor
- A2 L-bracket mounting
Applications
- The acoustic path of EMCORE MICRO (L/R)
- Builds with limited space
THUNDER TSR-100F — technical data
| RMS power | 100 W |
|---|---|
| Peak power | 150 W |
| Frequency band | 500 Hz – 5 kHz |
| Nominal impedance | 11 Ω |
| Magnet motor | Neodymium |
| Housing | Aluminum |
| Dimensions | 145 × 145 × 150 mm |
| Mounting | L-bracket A2 |
| Operating temperature | −40 → +60 °C |
THUNDER TSR-100F — questions and answers
THUNDER TSR-100F is priced individually — the price depends on the configuration (variant, length, colors, control) and order size. As the manufacturer we offer B2B terms for upfitters and fleets; a quote is usually ready the same business day. Ask via the form or by phone: +48 518 909 088.
From the same ecosystem

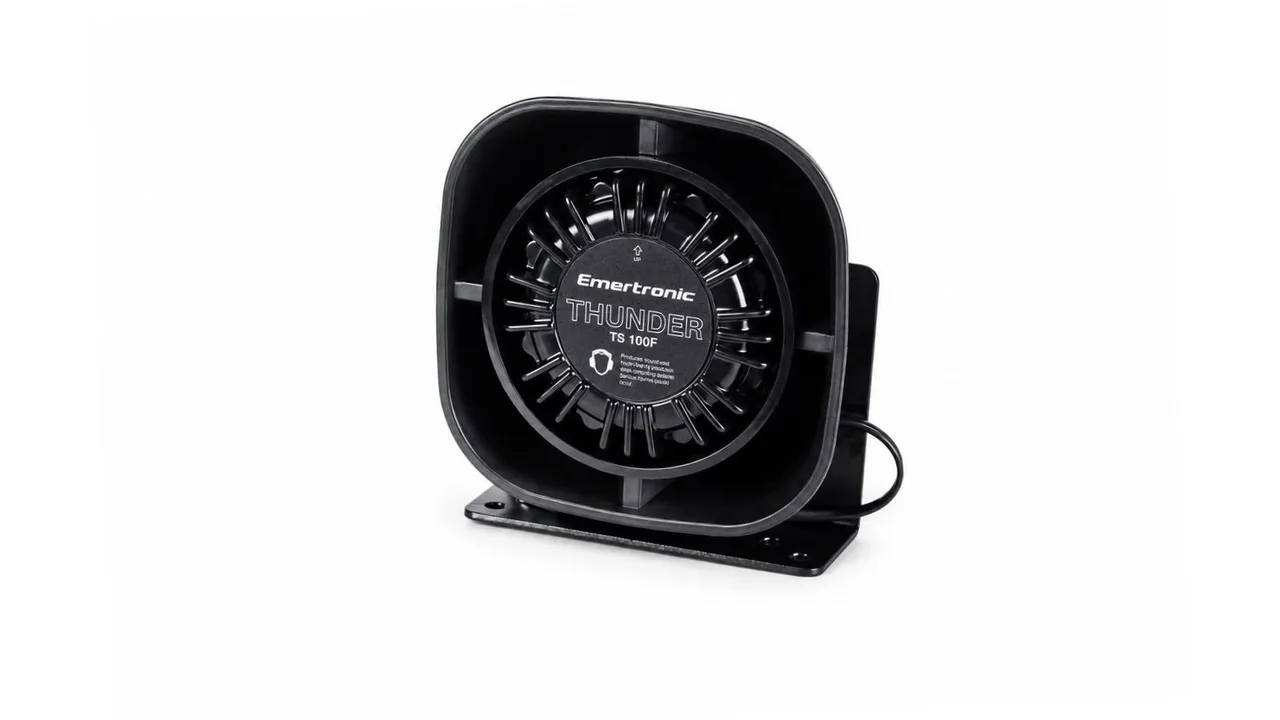

Siren speakerTHUNDER TS-100F
Louder. Cleaner. Farther.
A 100 W siren speaker rated IP66: an in-house voice coil, a neodymium magnet and ferrofluid cooling — an acoustic path tuned to the 500–1800 Hz band of EMCORE amplifiers.
View product
Low-frequency speakerREZON SPEAKER
The band you feel.
A 100 W low-frequency speaker in a polyamide housing, with a polypropylene cone resistant to engine-bay conditions. A 180–500 Hz band — below the reach of classic siren speakers; tuned as a set with the REZON modules.
View product
Ask about THUNDER TSR-100F.
We reply during office hours: Mon–Fri 7:00–15:00 (CET). Configuration and pricing with no obligation.
