Traffic advisors · Part No. SPECTRON-2K

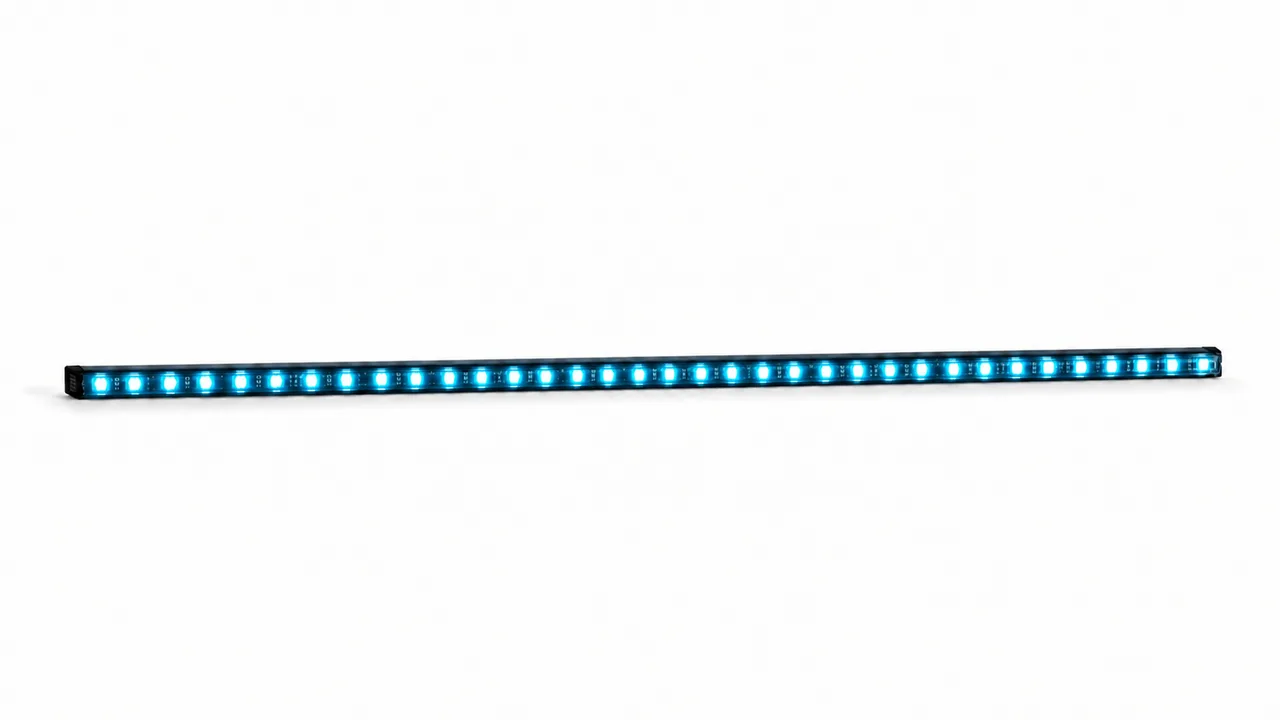

SPECTRON 2KTraffic advisor — 2K modules (6 LED)
Flows. Points. Divides.
A traffic advisor with 2K modules (6 LEDs) — up to 72 LEDs in an ultra-flat 30 mm housing. The blue XB2 version with ECE R65 class 2 type approval also works as fully-fledged priority signaling.
ECE R65 Cl. 2 (XB2)ECE R10E20
UNECE E20 65R XB2 · UNECE E20 10R-07
SPECTRON 2K — about the product
SPECTRON 2K doubles the light density and extends the advisor's role beyond traffic direction: 2K modules (6 LEDs) build configurations of up to 72 LEDs, and the blue XB2 version with ECE R65 top-class-2 approval works as fully-fledged priority signaling.
Key features
- 2K modules — 6 LEDs per module
- Configurations of 2–12 modules (12–72 LEDs)
- Ultra-flat design — 30 mm thick
- Extruded aluminum-alloy housing
- Warning OR directing (traffic advisor) function
- LED lifetime 100,000 hours
- Non-volatile flash-pattern memory
- SFL-10, analog or CAN control
Applications
- Traffic direction: merge left / right / split
- Rear of the body — roadworks-protection vehicles
- Warning mode during static work
Variants and options
- Amber (traffic direction)
- XB2 — blue, ECE R65 class 2
- six mounting lengths 200–1250 mm
SPECTRON 2K — technical data
| Module | 2K — 6 LED |
|---|---|
| LED count | 12–72 pcs |
| Configurations | 2× – 12× |
| Maximum power | 72 W |
| Current draw | 6 A (12 V) · 3 A (24 V) |
| Voltage | 10–30 V DC |
| Dimensions | 30 × 39.5 × 200–1250 mm |
| Weight | 0.5–1.5 kg |
| Operating temperature | −40 → +60 °C |
| LED colors | A · R · B · green · white |
| Controller | SFL-10 · 3-wire · CAN |
SPECTRON 2K — questions and answers
SPECTRON 2K is priced individually — the price depends on the configuration (variant, length, colors, control) and order size. As the manufacturer we offer B2B terms for upfitters and fleets; a quote is usually ready the same business day. Ask via the form or by phone: +48 518 909 088.
Ask about SPECTRON 2K.
We reply during office hours: Mon–Fri 7:00–15:00 (CET). Configuration and pricing with no obligation.
