Low-frequency systems · Part No. EM-MICRO-REZ
EMCORE MICRO REZONLow-frequency generator module (sync)
The band you feel.
A 150–500 Hz low-frequency module with two dedicated REZON speakers — two octaves below the siren, synchronized with its tones. A signal you feel through the bodywork: it penetrates insulated cabins, closed windows and city noise.
ECE R10E20
UNECE E20 10R-06
EMCORE MICRO REZON — about the product
EMCORE MICRO REZON gives the siren a dimension no insulated cabin or closed window can stop: a 150–500 Hz band — two octaves below the siren — that the driver feels through the bodywork before hearing or seeing the vehicle.
Key features
- −2 octave synchronization with the amplifier (requires EMCORE Ultra)
- 2× dedicated REZON low-frequency speaker
- Auto-sync with the main tones (Wail / Yelp / Phaser…)
- Momentary and continuous modes
- Compact mounting: front / rear / under the bumper
Applications
- Cutting through insulated cabins and closed windows
- Junctions and congestion — a signal you feel, not just hear
- Mounting: front / rear / under the bumper
EMCORE MICRO REZON — technical data
| Operating frequency | 150–500 Hz |
|---|---|
| Synchronization | −2 octaves, auto with the base siren |
| Works with | requires EMCORE Ultra |
| Operating mode | momentary / continuous |
| Voltage | 12 / 24 V DC |
| Speakers | 1× or 2× |
| Control | Analog |
| Housing | ABS, compact |
| Operating temperature | −30 → +60 °C |
EMCORE MICRO REZON — questions and answers
EMCORE MICRO REZON is priced individually — the price depends on the configuration (variant, length, colors, control) and order size. As the manufacturer we offer B2B terms for upfitters and fleets; a quote is usually ready the same business day. Ask via the form or by phone: +48 518 909 088.
From the same ecosystem

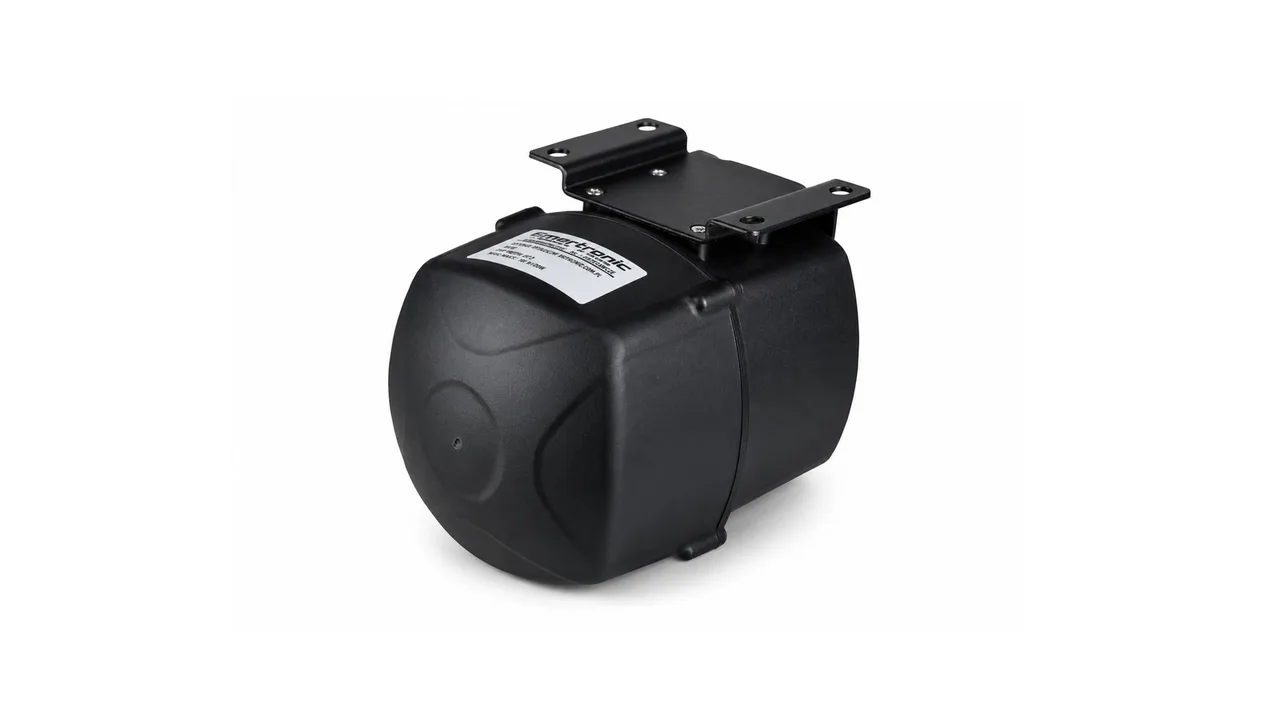

Low-frequency speakerREZON SPEAKER
The band you feel.
A 100 W low-frequency speaker in a polyamide housing, with a polypropylene cone resistant to engine-bay conditions. A 180–500 Hz band — below the reach of classic siren speakers; tuned as a set with the REZON modules.
View product
Siren amplifier + light controllerEMCORE ULTRA
Your vehicle. One controller.
A 100/200 W siren amplifier with a class-D digital output stage (MOSFET) and a 6×10 A light controller (Σ 30 A), in an aluminum-and-ABS housing. A control head with a durable silicone keypad — the vehicle's entire signaling under the operator's thumb.
ECE R10E20View product

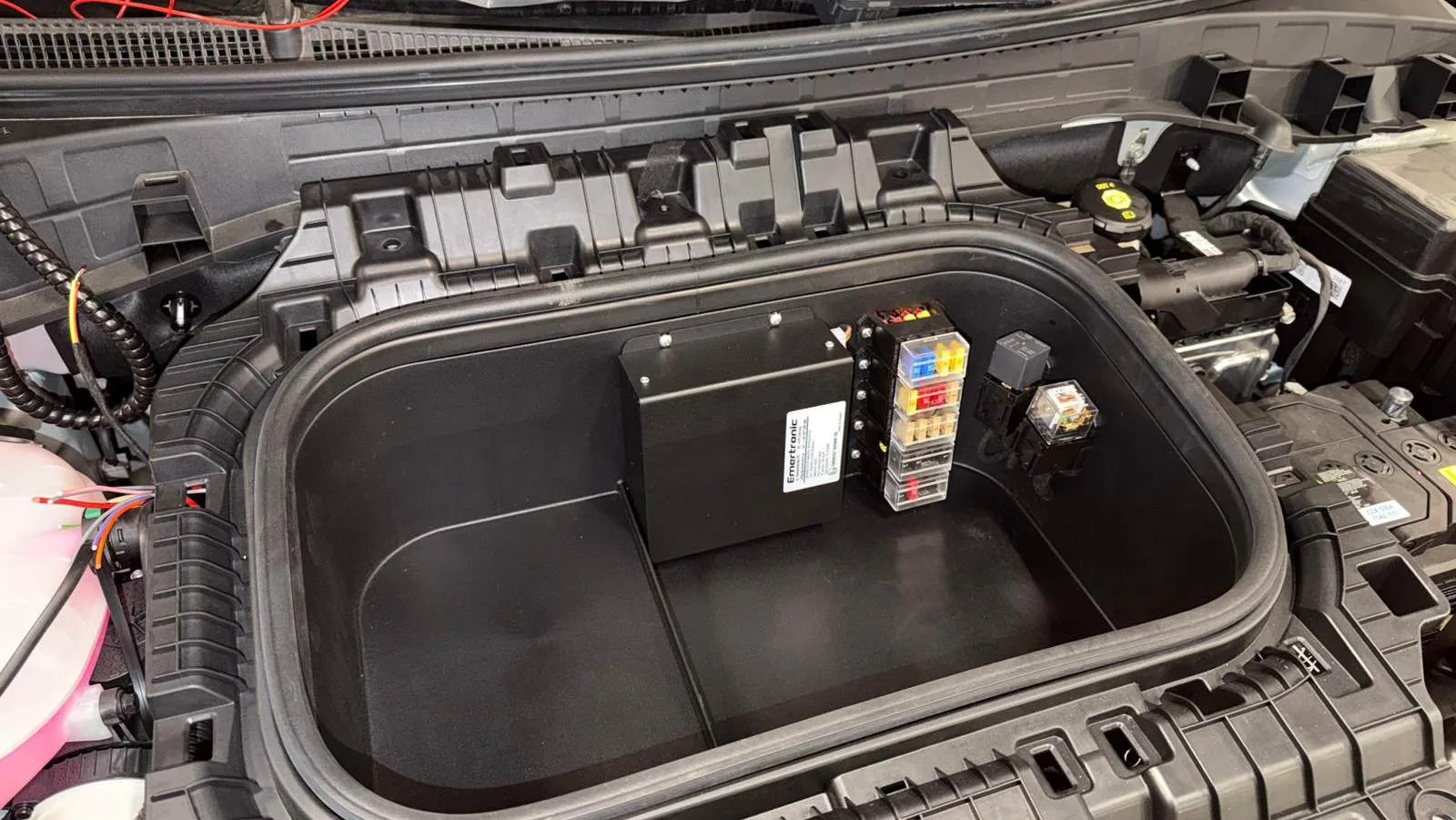

Low-frequency generator module (stand-alone)EMCORE MICRO REZON PLUS+
Low band. Own signal.
A stand-alone 150–500 Hz low-frequency generator with its own signal — works without EMCORE Ultra or any base amplifier. The shortest route to a vehicle you feel before you hear it.
ECE R10E20View product
